QUESCO.CC is a well-known supplier specializing in elastomeric couplings. With their expertise and experience in the industry, they have established themselves as a reliable source for all elastomeric coupling needs.
Now, there's a new solution to one of the most costly and troublesome problems facing maintenance personnel - coupling failure and the expensive down-time associated with fixing it. By providing high-quality elastomeric couplings, QUESCO.CC helps businesses avoid unnecessary downtime and costly repairs.
Their dedication to customer satisfaction ensures that each coupling is carefully designed and manufactured to minimize the risk of failure, keeping operations running smoothly and efficiently.
Trust QUESCO.CC to provide the best solutions for all elastomeric coupling needs.
Only four parts to the Samiflex Coupling
The two identical hubs ( items A & B) are manufactured in cast iron, cast steel, or aluminium and incorporate four, six, or eight teeth, depending on the size rating of the coupling.
A precision cast and machined polyurethane insert ( item C ) fits between the hubs and is split axially so fitting and removal can be achieved without removing the hubs.
The holding ring, manufactured in steel, polyamide, or bronze ( item D) is fitted over the insert securing both insert and ring between hubs. The coupling requires no bolts and nuts.
Assembly and disassembly

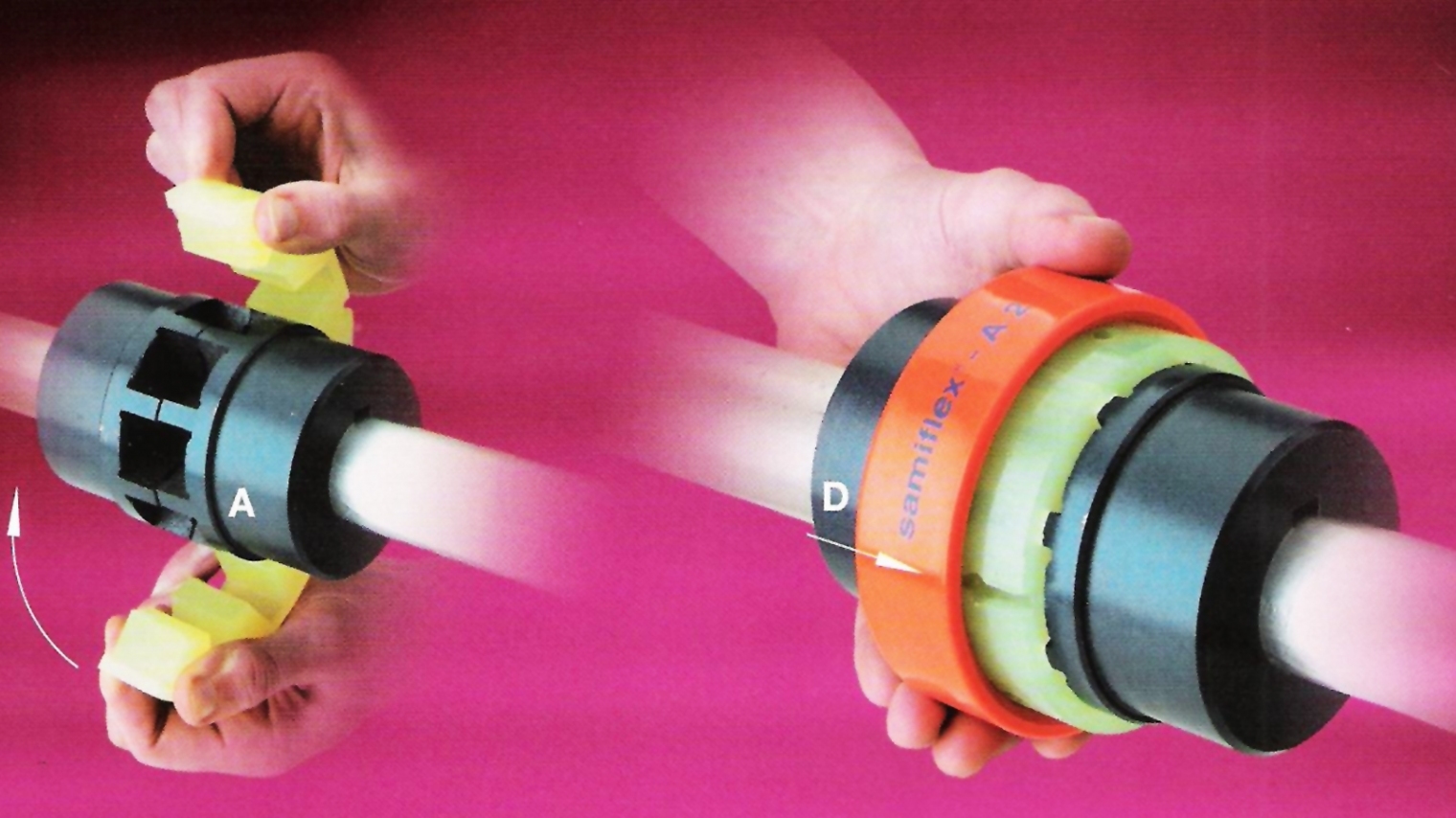

Once hubs (A) and (B) holding ring (D) have been installed and aligned on the shafts the coupling hubs will not have to be moved again during the life of the equipment. The elastic insert (C) can then be installed between the parallel slots formed by the hub teeth.
With the insert position, slide the retaining ring (D) into position over the polyurethane insert. Centrifugal force will expand the insert under operation ensuring a tight, secure fit inside the retaining ring.
Removing and replacing the coupling insert is very simple and requires no special tools. Removing the retaining ring allows the insert to be quickly and easily removed and replaced without needing to undo the screws, bolts, or fasteners.
Features and Benefits
The coupling insert is removable without the need to remove either driving or driven equipment.
Change out of coupling insert is faster than other couplings
No lubrication or maintenance is required over the life of the insert
The polyutherane insert can be supplied in a variety of hardness to optimise torque capacity and damping.
Polyutherane is very resistant to chemical attacks.
The standard insert can handle large temperature range iron from -40 o c to 80 o c
Hubs can be rotated independently during the motor test
No metal–to–metal contact
Large bore to torque capacity
Vertical operation is possible with standard coupling.
Retaining rings are provided with locking screws as standard.
